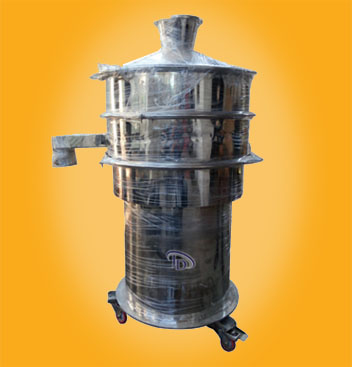

Vibro Sifters are circular gyratory machine. Screens are used to separate mass composition of solids, liquid from solid and for gradation of materials as per particle sizes. Vibration is generated in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The angle of lead of the lower weight to the upper weight provides variable screening paern & output.

APPLICATION: Vibro Sifters are widely used in all the industries where filtering is important, sifters are used in every applicaon in process of Pharmaceuticals, Bulk Drugs, Ayurveda, cosmetic, spices, Nutraceuticals, Confectionary... etc

SALIENT FEATURES :

• Available in standard and cGMP models with contact parts in stainless steel 304 or 316 quality. Portable unit with higher output & Noiseless maintenance-free unit.

• Single, Double and Triple deck units with different screens can be provided for easy to Filter the material of desired product.

• Models Available in - 20", 30", 36", 48", 60" & 70".

OPTIONAL FEATURES :

• Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system.

• Double or triple deck sifting system.

TECHNICAL SPECIFICATIONS :

Model	JDI/VS-20"	JDI/VS-30"	JDI/VS-36"	JDI/VS-48"	JDI/VS-60"
Output - kg/hour	50 to 150	150 to 200	200 to 350	350 to 600	600 to 900
Screen Diameter - mm.	508	762	915	1220	1524
Charging height- mm.	1190	1190	1190	1330	1250
Discharging height - mm.	750	750	750	750	750
Electric Power hp/kw	0.25 / 0.37	0.5 / 0.37	0.5 / 0.37	1 / 0.75	1.5 / 1.5
