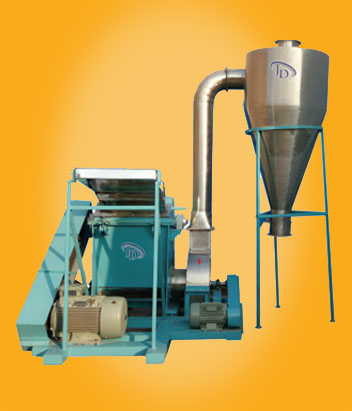

Impact pulverisers are designed to reach the required capacities in different sectors. The word "IMPACT" itself derives us the perfect meaning of the machine, the action of one object coming forcibly into contact. The chamber contain desired designed hammer blades, desired models of Liner plates and Sieves are assembled to achieve the desired fineness of the product with the help of Blower/suction fan the output material is carried out in Dust Separator and dust is collected in Dust Collector.

APPLICATION: Impact pulverisers are used in many different fields like Pharmaceuticals, Agriculture, Fertilizers, Spices, Ayurveda....etc Sectors.

SALIENT FEATURES :

• Impact pulveriser is constructed in Heavy Duty.

• All the parts have been fitted exact to applicaton.

• Wide ranges are available depending on Production capacity of customer.

• Starting with 3HP to 50HP capacies are available with "JD".

OPTIONAL FEATURES :

• SS 316 in the place of SS 304/MS.

• Complete cGMP models are available based on application.

• Different models of Hammers are designed for different applications.

• Advanced liner plates assembly.

• Extra electrical fings.

TECHNICAL SPECIFICATIONS :

Model	JDI/IMP300	JDI/IMP500	JDI/IMP1000	JDI/IMP1500
Capacity per hour	250-300 Kg	450-500 Kg	800-1000 Kg	1300-1500 Kg
Rotor (RPM)	1480/5700/6720	1480/5700/6720	1480/5700/6720	1480/5700/6720
Electrical Motor	7.5 HP	10 HP	20 HP	25 HP
Dimensions in mm	700 L x 600 W x 2050 H	850 L x 750 W x 2200 H	1200 L x 1000 W x 2500 H	1400 L x 1100 W x 2800 H
Net Weight in Kg	180 (approx.)	220 (approx.)	280 (approx.)	320 (approx.)
Gross Weight in Kg	200 (approx.)	230 (approx.)	300 (approx.)	340 (approx.)
