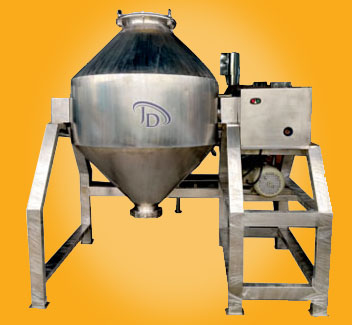

Double-cone Blender

Double-cone Blender

The Double-cone shape blenders have two long corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of parctiles with rapid intermixing of particles irrespective of varying specific gravities with the help of Baffles.

APPLICATION: Double cone Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, cosmetics, ceramics, pesticide, plastics and other Allied industries


SALIENT FEATURES :

    All Product contact parts of AISI 316 & Non contact parts of AISI 304.

  • Double Cone shaped product container is for Ideal dry mixer & lubrication of granules for homogenization mixing of multiple batches in to single batch.

  • Available Capacities are 25 kg to 2500 kg batch size.

  • Enclosed rigid drive with reduction gear box and motor.

  • Product container having discharge with butterfly valve and a man hole.

  • Fixed & removable baffles provided for lumps braking.


OPTIONAL FEATURES :

  • Charging through conveyors

  • Loading & Unloading of Product container with jacking trolley.

  • Vacuum conveying system.

  • Bin loading by hydraulic hoist.

  • Rotary Intensifier with AC variable drive.

  • AC Frequency variable drive for product container.

  • Flame proof motor and Push Button station.


TECHNICAL SPECIFICATIONS :

Model Working
Volume
(Liters)
Gross
Volume
(Liters)
Discharge
Height
Charge
Opening
Electrical
Power
Overall
Dimensions
(L) x (W) x (H) mm
JDI/DCB-100 200 300 450 200 2 HP 1750 x 850 x 1900
JDI/DCB-200 400 600 450 200 2 HP 2050 x 1100 x 2050
JDI/DCB-400 800 1200 600 300 3 HP 2350 x 1600 x 2350
JDI/DCB-500 1000 1500 800 350 3 HP 2450 x 1800 x 2300
JDI/DCB-750 1400 2100 800 350/400 5 HP 3000 x 2100 x 2700
JDI/DCB-1000 2000 3000 800 450/500 7.5 HP 3400 x 2100 x 2500
