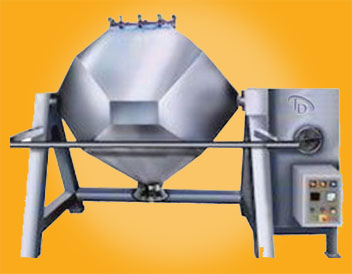

Polygon Blender is ideal for bending of powder and homogeneous lubrication of granules in short me cycles. Polygon Blender operates on diffusive mixing principle of distributing particles over a surface to surface connuously located at optimum angles. Polygon Blender can be used at higher RPM as the blender is well balanced.

APPLICATION: Polygon Blender is useful in Chemical, Pharmaceutical, Cosmetics, Food and other industries for Accurate blending procedures.

SALIENT FEATURES :

• Wide range from 50 ltrs to 2000 ltrs, Superior blending efficiency & Guard for safety purpose

• Saving process me

• Can be Operated on higher RPM

OPTIONAL FEATURES :

• S.S.316 contact parts in place of S.S.304

• GMP Model in place of standard mode

• Flame proof electrical fings

TECHNICAL SPECIFICATIONS :

Model	Working Volume (Liters)	Gross Volume (Liters)	Discharge Height	Electrical Power	Overall Dimensions (L) x (W) x (H) mm
JDI/PB-50	50	75	300	2 HP	1750 x 850 x 1900
JDI/PB-100	100	125	400	3 HP	2050 x 1100 x 2050
JDI/PB-200	200	250	450	3 HP	2350 x 1600 x 2350
JDI/PB-400	400	450	450	5 HP	2450 x 1800 x 2300
JDI/PB-600	600	650	550	7.5 HP	3000 x 2100 x 2700
JDI/PB-1000	1000	1100	650	10 HP	3400 x 2100 x 2500
JDI/PB-1500	1500	1650	650	10 HP	3700 x 2400 x 2800
