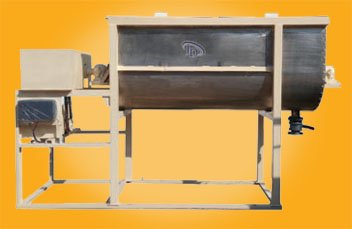

Ribbon Blender is designed for rapid and thorough blending & mixing to eliminate product stagnation and rapid acon the opposite ribbons rolls, tumbles and pushes the product in opposite direction horizontally from both ends. The flow of material in opposite direction results in uniform and fast mixing.

APPLICATION: Ribbon blenders are widely used in Agro Chemi cal, Pigments, Pharmaceutical, Nutraceuticals, Ayurvedic & Herbals, Detergent, Paint, Bakery & Biscuits, Food Salt & Dairy, Cosmetics, Biotechnology & etc.

SALIENT FEATURES :

• All Product contact parts of AISI 316 & Non contact parts of AISI 304.

• The lid has 3 piece segment with fixed centre piece and hinged cover at either sides for charging of products

• The main shaft made of stainless steel on which the ribbons are welded

• The ribbons are made of stainless steel flats with suitable size and thickness depending up on the capacity

OPTIONAL FEATURES :

• Charging through conveyors.

• Unloading of Product container with jacking trolley.

• Vacuum conveying system.

• Bin loading by hydraulic hoist.

• Rotary Intensifier with AC variable drive.

• AC Frequency variable drive for product container.

• Flame proof motor and Push Button station.

TECHNICAL SPECIFICATIONS :

Model	Working Volume (Liters)	Gross Volume (Liters)	OUTPUT RPM*	Total HP required APPROX
JDI/RB-200	200	250	30-35	2 to 3HP
JDI/RB-300	300	350	30-35	3 to 6HP
JDI/RB-500	500	650	30-35	5 to 7.5HP
JDI/RB-1000	1000	1150	30-35	7.5 to 10HP
JDI/RB-1500	1500	1650	20-24	10 to 20HP
JDI/RB-2000	2000	2200	20-24	15 to 30HP
JDI/RB-2500	2500	2700	18-20	20 to 30HP
