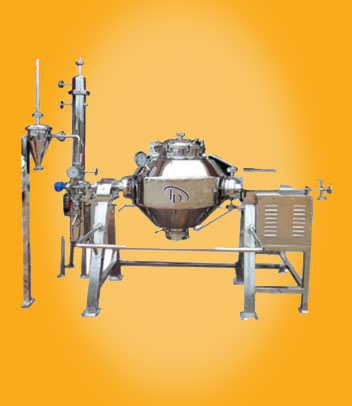

Rotary Cone Vacuum Dryer

Rotary Cone Vacuum Dryer is useful where it is difficult to dry materials and are easily dried at low temperature efficiently under vacuum jacket. Caking and crushing of the materials are avoided due to the tumbling action. RCVD is not only merely an efficient and reliable dryer, but also a unique system which - besides supplying a perfectly dry product of particles less than are milli-meter in size directly from damp powders through filtration or centrifugation - offers many other appreciable advantages.

RCVD is not only merely an efficient and reliable dryer, but also a unique system which besides supplying a perfectly dry product of particles less than are milli-meter in size directly from damp powders through filtration or centrifugation offers many other appreciable advantages.

SALIENT FEATURES :

  • Wide Range from 100 ltrs to 2000 ltrs.

  • Low drying temperature, Fast drying due to tumbling action.

  • Seal system enabling admittance of vacuum and inert gas to the cone.

  • Receiver cum trap, a suitable provision for connecting to vacuum pump.

  • Provision for vacuum break.

  • Vacuum gauge as a standard supply.

  • Safety guard provision.

  • Cyclone Separator in SS. 316.


OPTIONAL FEATURES :

  • All contact parts SS 304/316/316L AISI quality, Machine rated for continues operation.

  • M.S Jackeng shell in place of S.S.

  • Discharge material collecng tray.

  • GMP model in place of standard model.

  • Receiver and Condenser.


TECHNICAL SPECIFICATIONS :

Model JDI/RCVD-100 JDI/RCVD-200 JDI/RCVD-500 JDI/RCVD-1000 JDI/RCVD-2000
Cone volume in Ltrs 100 200 500 1000 2000
Working capacity in Ltrs 60 120 300 600 1200
Inner shell Thickness in mm 3 4 4 5 5
Outer shell Thickness in mm 2 3 3 4 4
Sheet thickness of Cyclone separator in mm 2 3 3 4 4
Electrical Motor HP/Kw 0.5/0.37 1/0.74 3/2.22 5/3.67 10/7.40
Overall dimensions in mm(Approx) L 1050 X W 1260 X H 2370 L 1320 X W 1520 X H 2550 L 1675 X W 1800 X H 3200 L 1950 X W 2370 X H 3550 L 2450 X W 2950 X H 3700
Net weight in Kgs.(Approx) 125 140 425 850 1450
