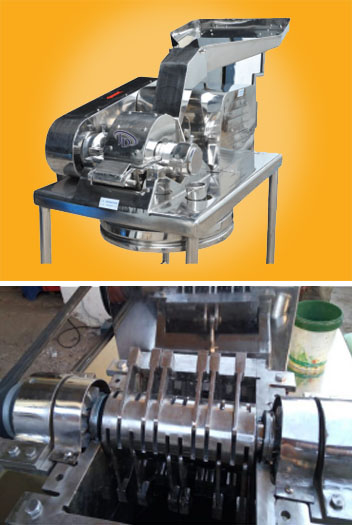

Micro Pulveriser

Micro Pulveriser

Micro Pulveriser is designed to meet the required fineness of powders as per required limitations in Pharmaceutical, Chemical and in every sector/ industries. The mill can be effecvely used for pulverising so and hard material to required fineness. The milling chamber is provided with replaceable mulple liner/serrations to achieve greater fineness of milled material.

APPLICATION: Micro Pulveriser machine is widely used for micro pulverisation in Pharmaceutical, Food, and chemical, Ayurveda ,Confectionery ,Spices milling and many more other industries.


SALIENT FEATURES :

  • Dynamically balanced rotor.

  • Special alloy steel hammers rotating at very high speeds.

  • Replaceable mulple deflector liner with innovative serrations for fine parcle reduction.

  • Wide range of model to suit desired output.

  • Quickly & easily accessibility of chamber for cleaning and inspection.


OPTIONAL FEATURES :

  • S.S.316 in place of S.S.304 contact parts, Various shapes of hammers, GMP model in place of standard model.

  • Screw feeding system.

  • Flameproof electrical fings.

  • Water jacketed model.


TECHNICAL SPECIFICATIONS :

Model JDI/MP-8X3 JDI/MP-12X6 JDI/MP-12X9
Capacity per hour 50-150 Kg 100-250 Kg 250-500 Kg
Rotor (RPM) 1480/5700/6720 1480/5700/6720 1480/5700/6720
Electrical Motor 3 HP 7.5 HP 10 HP
Dimensions in mm 700 L x 900 W x 1650 H 750 L x 1150 W x 1700 H 950 L x 1250 W x 1750 H
Net Weight in Kg 70 (approx.) 120 (approx.) 140 (approx.)
Gross Weight in Kg 80 (approx.) 140 (approx.) 160 (approx.)
