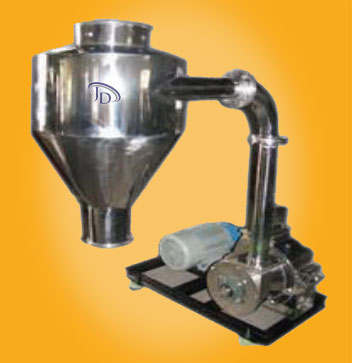

Cone pulveriser is designed to approach the required fineness of products. Cone pulveriser consists of rotor with high speed, complete chamber consists of Liner plates made of SS, different models of blades to reduce the size of particle. The particles are minimised and customised to required size as output through the collector with the help of blower which sucks the material from chamber which is crushing the input material to reduce the size.

In this model there will be No mesh/sieve assembly, particle sizes are reduced in a continuous process of milling where the rotor with blades crushes the particles and blower fan sucks the lifted particles in the chamber and stores in Powder collector and it is ready to collect in bags/containers.

APPLICATION: Cone Pulveriser machine is widely used for micro pulverisation in Pharmaceutical, Food, and chemical, Ayurveda ,Confectionery ,Spices milling and many more other industries.

SALIENT FEATURES :

• Dynamically balanced rotor.

• Special alloy steel hammers rotang at very high speeds.

• Replaceable multiple deflector liner with innovative serrations for fine particle reduction.

• Wide range of model to suit desired output.

• Heavy-duty structure for good stability.

• Quick & Easy accessibility of chamber for cleaning and inspection.

OPTIONAL FEATURES :

• S.S.316 in place of S.S.304 contact parts, Various shapes of hammers, GMP model in place of standard model.

• Flameproof electrical fings.

• Water jacketed model.

TECHNICAL SPECIFICATIONS :

Model	JDI/CP100	JDI/CP300	JDI/CP500	JDI/CP1000
Capacity per hour	50-100 Kg	100-300 Kg	300-500 Kg	600-1000
Rotor (RPM)	1480/5700/6720	1480/5700/6720	1480/5700/6720	1480/5700/6720
Electrical Motor	3HP	7.5HP	10 HP	15 HP
Dimensions in mm	700 L x 900 W x 1650 H	750 L x 1250 W x 1700 H	800 L x 1250 W x 1750 H	950 L x 1450 W x 2000 H
Net Weight in Kg	95 (approx.)	160 (approx.)	225 (approx.)	320 (approx.)
Gross Weight in Kg	120 (approx.)	205 (approx.)	280 (approx.)	350 (approx.)
