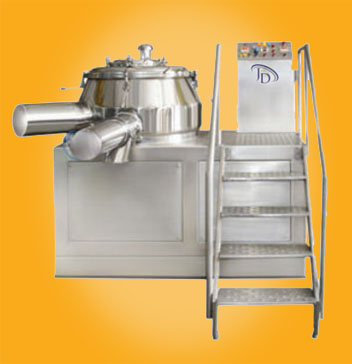

Rapid Mixer Granulator

Rapid Mixer Granulator

The High Shear Mixer Granulator used for process of fast dry & wet mixing, homogenizing, humidifying and granulating of the powder in Pharmaceutical, Chemical, Cosmetic, Food, Plastic, General Mixing Industries. High Shear Mixer Granulator series is characterized by the compact construction, modern design and user-friendly maintenance attributes which form the ergonomics design aspects are essential for a wide range of application.

APPLICATION: The High Shear Mixer Granulator performs dry mixing & wet granulating by basic design of the special four arm of the mixing impeller and sequences of the mixing process in the cylindrical mixing drum with rounded connection to the base plate, achieve another special effect.


SALIENT FEATURES :

  • High speed mixing & granulating.

  • Design is cGMP - Current Good Manufacturing Pracces compliance.

  • All Product contact parts AISI 316 & non contact parts AISI 304.

  • Automated maxing and granulating process in single bowl.

  • High Precision mixing and granulation with Short Batch Time, Problem free Cleaning and Residue Free Discharge.

  • Unique design with four arm mixing impeller with blade angle to pushing product radically outward.


OPTIONAL FEATURES :

  • PLC Controls with HMI touch screen.

  • Inline Milling at discharge, Variable speed drive for main impeller and chopper.

  • Product bowl Jackeng for heang/ cooling and vacuumized mixing process.

  • Binder adding by spraying system with peristalc pump.

  • Material charging by bin loader with IBC.


SAFETY FEATURES :

  • Total drive transmission system enclosed.

  • Limit switch installed in the top lid ensure lid is closed.

  • Air pressure switch installed to ensure pressure is in limit.

  • Limit switch installed at discharge to ensure product container underneath of discharge.

  • Overload relay Protection and Emergency stop button.


TECHNICAL SPECIFICATIONS :

Model Gross Capacity In Litre(s) Working Capacity In Litre(s) Loading Capacity In Litre(s)
JDI/RMG-50 50 40 20
JDI/RMG-100 100 80 40
JDI/RMG-150 150 120 60
JDI/RMG-300 300 240 120
JDI/RMG-400 400 320 160
JDI/RMG-600 600 500 250
JDI/RMG-750 750 600 300
JDI/RMG-1000 1000 800 400
JDI/RMG-1200 1200 1000 500
