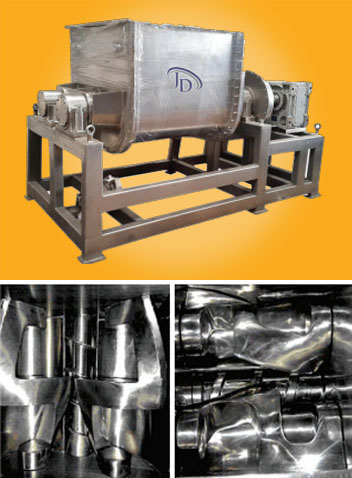

The Sigma Mixer is used for mixing, kneading and extruding of highly viscous mass, scky and dough like products, Mixing of pastes, rubber, and heavy plastic masses, The sigma kneader is a double arm mixer with two "Z" blades rotate towards each others at same or different speed inside a W- shaped product container.

APPLICATION: Sigma mixers/blenders are widely used in Food, Pharmaceutical, Chemical and agro industries, Dry powder to wet phase mixing, Ready-mades, Adhesive, Soap industries, Ayurveda ....etc.

SALIENT FEATURES :

• Designed as per cGMP & Non GMP Standard Models.

• Contact parts in AISI 316, AISI 304 or MS as desired by customer.

• Capability to pass from mix phase to extrusion phase without interruption.

• Lateral discharge of product through the extrusion s c rew without operator interaction.

• Shape of extruded material is adaptable to customer's requirements.

OPTIONAL FEATURES :

• PLC Controls with HMI touch screen.

• Binder spraying system.

• Product Bowl with Jackeng for heang and cooling.

• Flame Proof Electrical.

• Vacuum or pressure designs.

• Automatic control of blade speed based on product viscosity.

SAFETY FEATURES :

• Enclosed mixing and discharge provides protection from product contamination and greater operator safety.

• Total drive transmission system enclosed.

• Limit switch installed in the top lid ensure lid is closed.

• Overload relay Protection and Emergency stop button.

TECHNICAL SPECIFICATIONS :

Model	Total Capacity Litres	Working Capacity Litres
JDI/SM-5	8	3-5
JDI/SM-50	75	35-50
JDI/SM-100	150	70-100
JDI/SM-150	225	110-150
JDI/SM-200	300	150-200
JDI/SM-300	450	225-300
JDI/SM-400	600	300-400
JDI/SM-500	800	400-500
JDI/SM-750	1100	500-750
JDI/SM-1000	1400	700-1000
